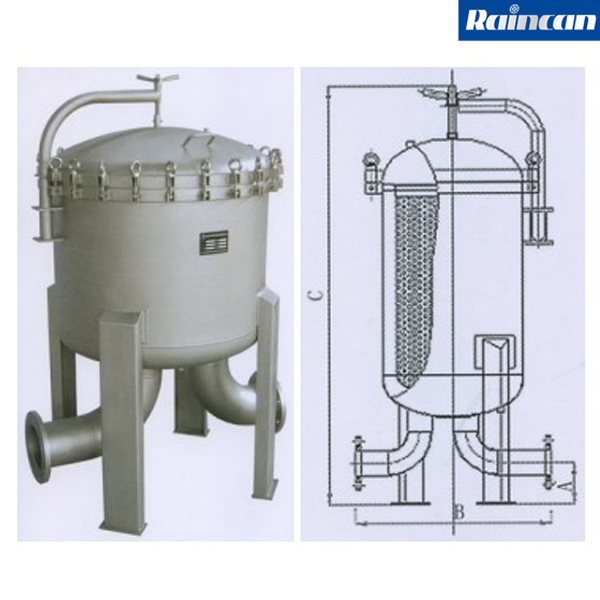

More-bag filter housing
Flow type: bottom-in, bottom-out
Value added features
Side inlet piping connection
Sizes for #01 single or #02 double-length filter bags
Unique two-weld design
Buna N seals standard
Electro polishing stainless steel basket
Matt finishing housing (standard delivery)
4'' DIN or HG or ANSI or JIS flanged connection (for 4 bags)
Maximum operating pressure of 10 bar
Maximum operating temperature 120℃
Evacuation cover with swing bolts
Fixed mounting legs
Type 304,316 stainless steel construction
| Product Code |
Dimension(mm) |
Max Pre. |
Max |
Bag Filters |
Connection |
Max Flow |
| A |
B |
C |
Bar |
Temp. |
Code |
Nos |
Inlet/Outlet |
M3/H |
| RCL-16 |
180 |
706 |
1500 |
10 |
60°C |
2 |
3 |
4" |
120 |
| RCL-17 |
200 |
756 |
1550 |
10 |
60°C |
2 |
4 |
5" |
160 |
| RCL-18 |
200 |
806 |
1550 |
10 |
60°C |
2 |
5 |
6" |
200 |
| RCL-19 |
220 |
906 |
1620 |
10 |
60°C |
2 |
6 |
6" |
240 |
| RCL-20 |
220 |
1106 |
1700 |
10 |
60°C |
2 |
8 |
6" |
320 |
| RCL-21 |
250 |
1110 |
1860 |
10 |
60°C |
2 |
10 |
8" |
400 |
| RCL-22 |
280 |
1210 |
1860 |
10 |
60°C |
2 |
12 |
10" |
480 |
| RCL-23 |
280 |
1410 |
1900 |
10 |
60°C |
2 |
14 |
10" |
560 |
| RCL-24 |
300 |
1510 |
1900 |
10 |
60°C |
2 |
16 |
12" |
640 |
| RCL-25 |
300 |
1610 |
2250 |
10 |
60°C |
2 |
18 |
12" |
720 |
| RCL-26 |
300 |
1610 |
2250 |
10 |
60°C |
2 |
20 |
12" |
800 |
