Cartridge Filter Housing

Product name：Cartridge Filter Housing

Item：

Details：

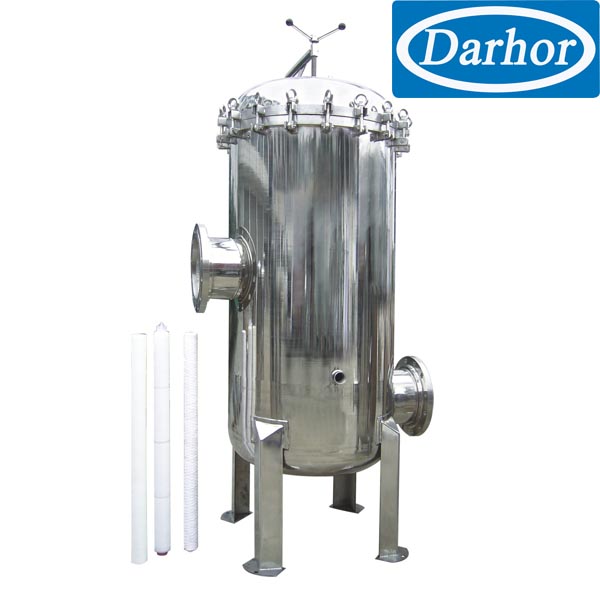

DAH5-Cartridge Filter Housing

Material: SUS304, SUS316L;

Max working pressure 150Psi;

Polished or sandblast external surface.

Standard specifications:

*Model*	A(mm)	B(mm)	C(mm)	D(mm)	F(mm)	E(mm)	H(mm)	In/Out	Drain
DAH5-W15L3	370	800	1580	Φ350	200	Φ350	490	11/2”-2”	1/2”
DAH5-W15L4	370	900	1830	Φ350	200	Φ350	490	11/2”-2”	1/2”
DAH5-W20L3	390	900	1630	Φ400	200	Φ400	560	2”-3”	3/4”
DAH5-W20L4	390	1000	1880	Φ400	200	Φ400	560	2”-3”	3/4”
DAH5-W27L3	460	900	1680	Φ450	250	Φ450	610	2”-4”	3/4”
DAH5-W27L4	460	1100	1930	Φ450	250	Φ450	610	2”-4”	3/4”
DAH5-W30L3	480	900	1740	Φ500	250	Φ500	660	2”-4”	1”
DAH5-W30L4	480	1100	1990	Φ500	250	Φ500	660	2”-4”	1”
DAH5-W36L3	500	900	1780	Φ550	250	Φ550	710	2.5”-4”	1”
DAH5-W36L4	500	1100	2030	Φ550	250	Φ550	710	2.5”-4”	1”
DAH5-W40L3	560	1000	1850	Φ600	300	Φ600	760	2.5”-4”	1”
DAH5-W40L4	560	1200	2100	Φ600	300	Φ600	760	2.5”-4”	1”
DAH5-W50L3	580	1000	1880	Φ650	300	Φ650	810	3”-4”	1”
DAH5-W50L4	580	1200	2130	Φ650	300	Φ650	810	3”-4”	1”
DAH5-W60L3	590	1000	1900	Φ700	300	Φ700	880	3”-5”	1”
DAH5-W60L4	590	1200	2150	Φ700	300	Φ700	880	3”-5”	1”
DAH5-W75L3	610	1000	1950	Φ750	300	Φ750	950	3”-5”	1-1/2”
DAH5-W75L4	610	1250	2200	Φ750	300	Φ750	950	3”-5”	1-1/2”
DAH5-W80L3	620	1100	1970	Φ800	300	Φ800	1000	4”-6”	1-1/2”
DAH5-W80L4	620	1250	2220	Φ800	300	Φ800	1000	4”-6”	1-1/2”
DAH5-W90L3	650	1100	2140	Φ850	300	Φ850	1000	4”-6”	1-1/2”
DAH5-W90L4	650	1250	2390	Φ850	300	Φ850	1000	4”-6”	1-1/2”
DAH5-W100L3	670	1100	2070	Φ900	300	Φ900	1140	4”-6”	1-1/2”
DAH5-W100L4	670	1350	2320	Φ900	300	Φ900	1140	4”-6”	1-1/2”
DAH5-W120L3	750	1200	2170	Φ1000	350	Φ1000	1240	4”-6”	1-1/2”
DAH5-W120L4	750	1400	2420	Φ1000	350	Φ1000	1240	4”-6”	1-1/2”
DAH5-W140L3	830	1300	2350	Φ1100	350	Φ1100	1400	4”-6”	2”
DAH5-W140L4	830	1500	2600	Φ1100	350	Φ1100	1400	4”-6”	2”
DAH5-W162L3	860	1300	2400	Φ1200	350	Φ1200	1500	6”-10”	2”
DAH5-W160L4	860	1500	2650	Φ1200	350	Φ1200	1500	6”-10”	2”
